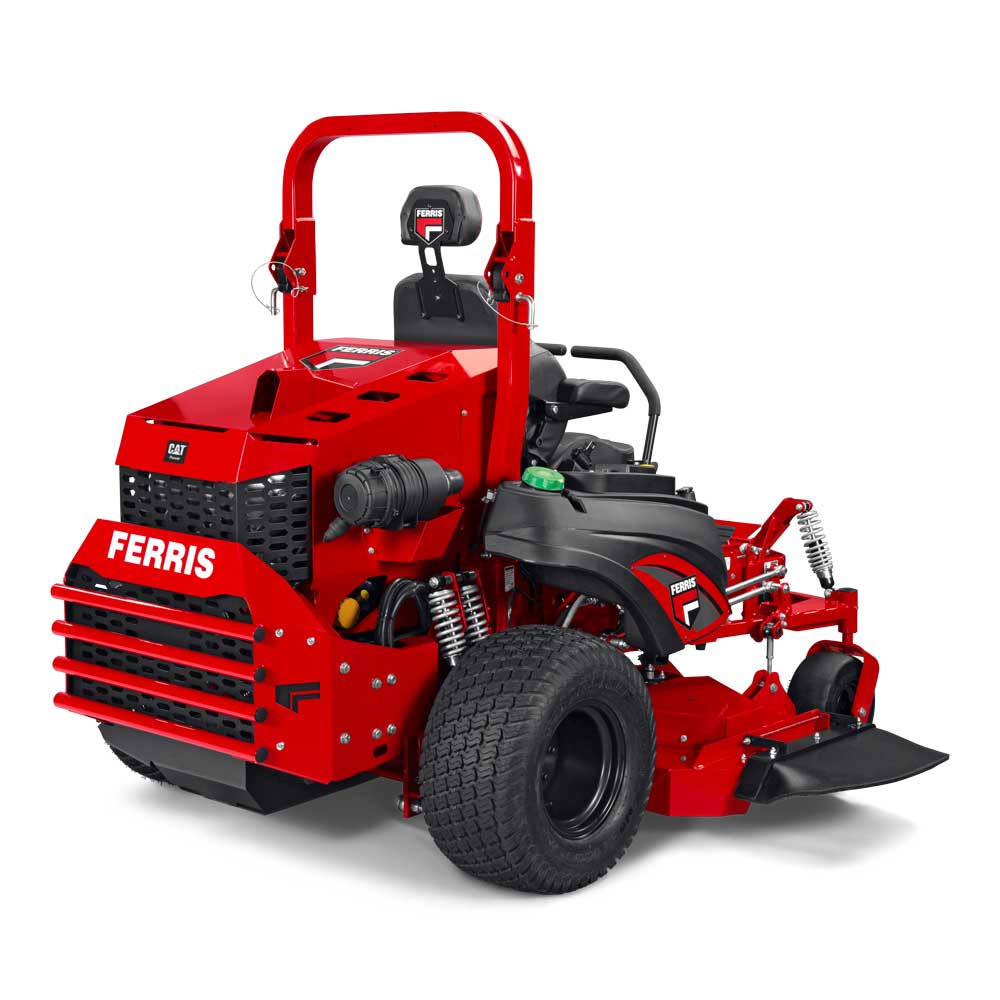

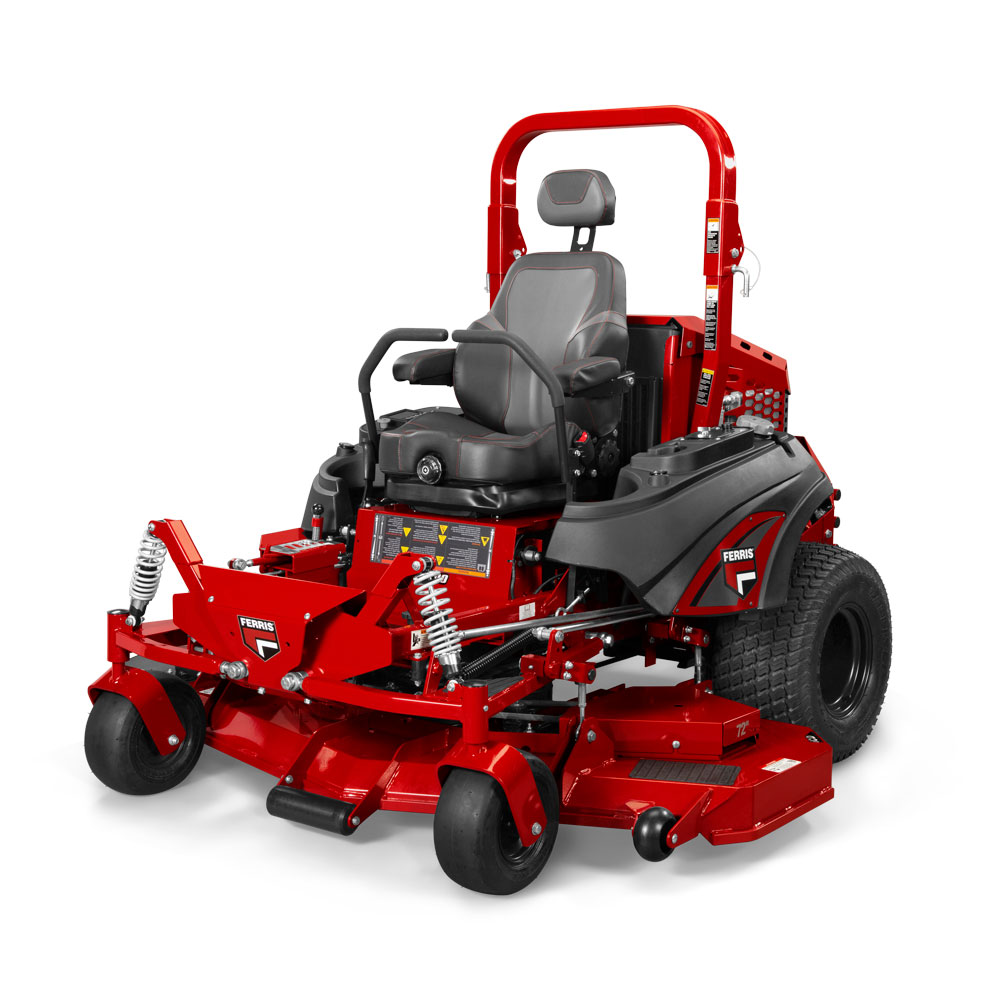

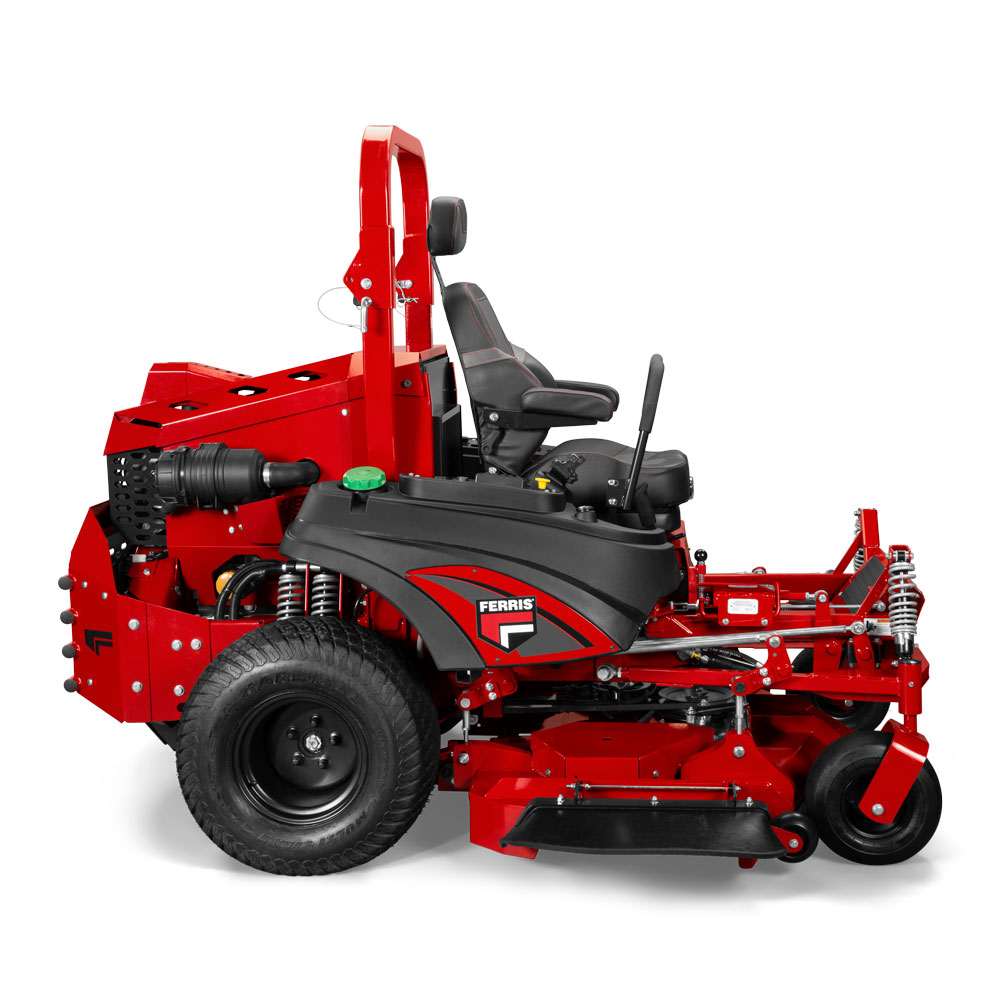

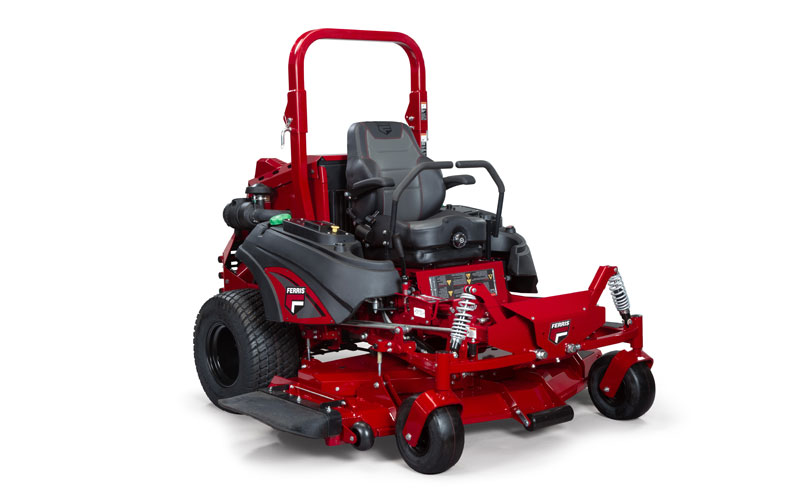

IS® 6200 Zero Turn Mower

BIG JOBS REQUIRE BIG POWER

Comfort, durability, and power are what make the IS 6200 more than a luxury, it's a necessity. The 48 hp* CAT® turbo diesel engine provides up to two times more longevity than a traditional petrol engine. Designed for the rigours of maintaining municipal and acreage properties, the IS 6200 is a must on your trailer to grow your business.

72

Cutting Width (in)

48

Power Rating* (HP)

19.3

Ground Speed (kph)

4-Years

Limited Warranty†

Features

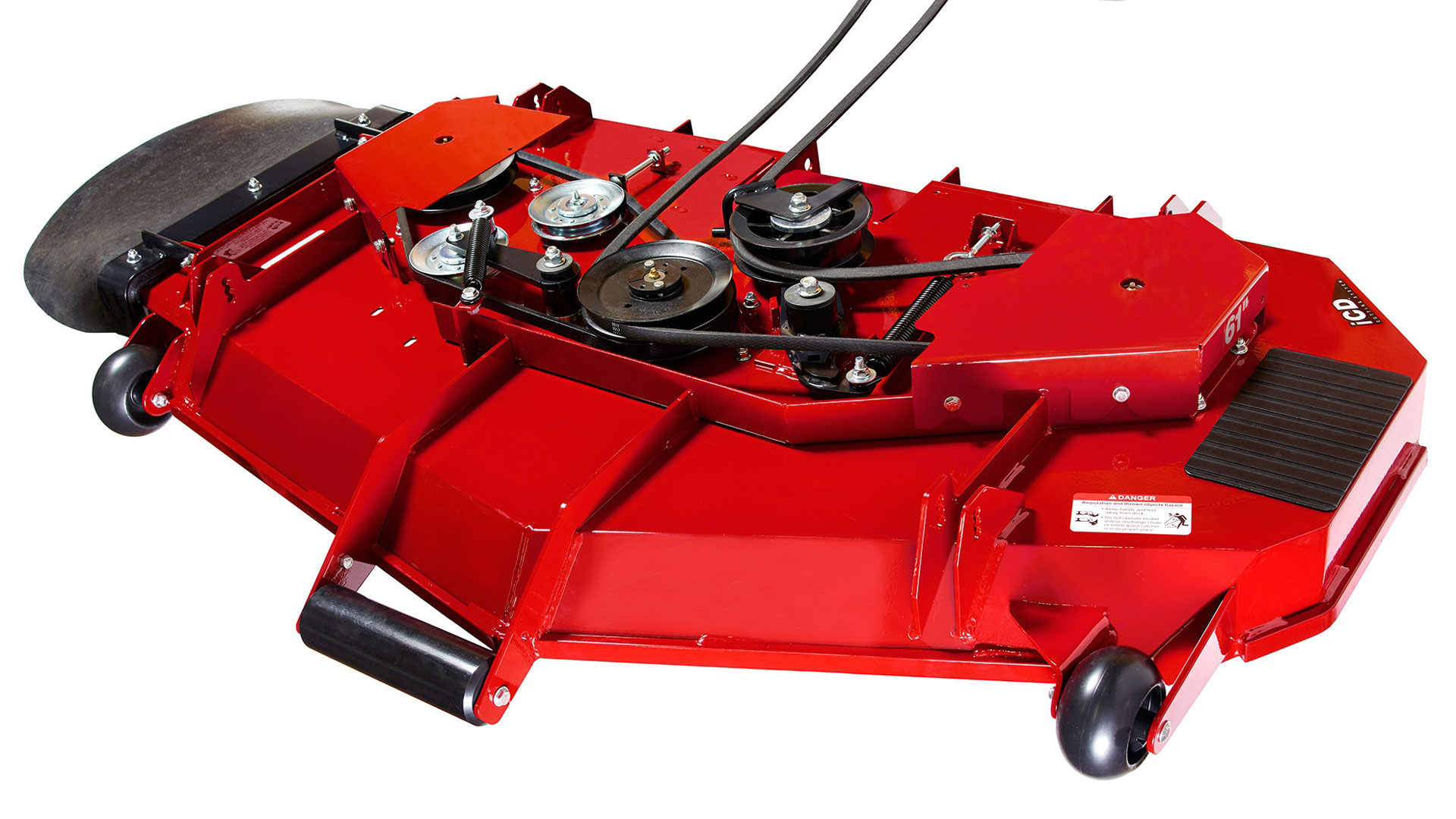

NEW! iCD™+ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results.

NEW! USB Port

USB Type A & C located on the dash panel for easy access and charging. 2.1A x 2 output and moisture rated to IP67.

CAT 48 HP* Turbo Diesel Engine

The top-of-the-line CAT C1.7L turbo diesel engine has a life expectancy between four and five thousand hours (double that of petrol engines). It's rated at 48 gross horsepower (the highest for a zero turn mower in its class) and 1700cc of grass dominating power.

Independent Suspension System

Utilises rear a-arm and front control arms with large adjustable coil-over shocks to minimise caster chatter and deliver a smooth ride.

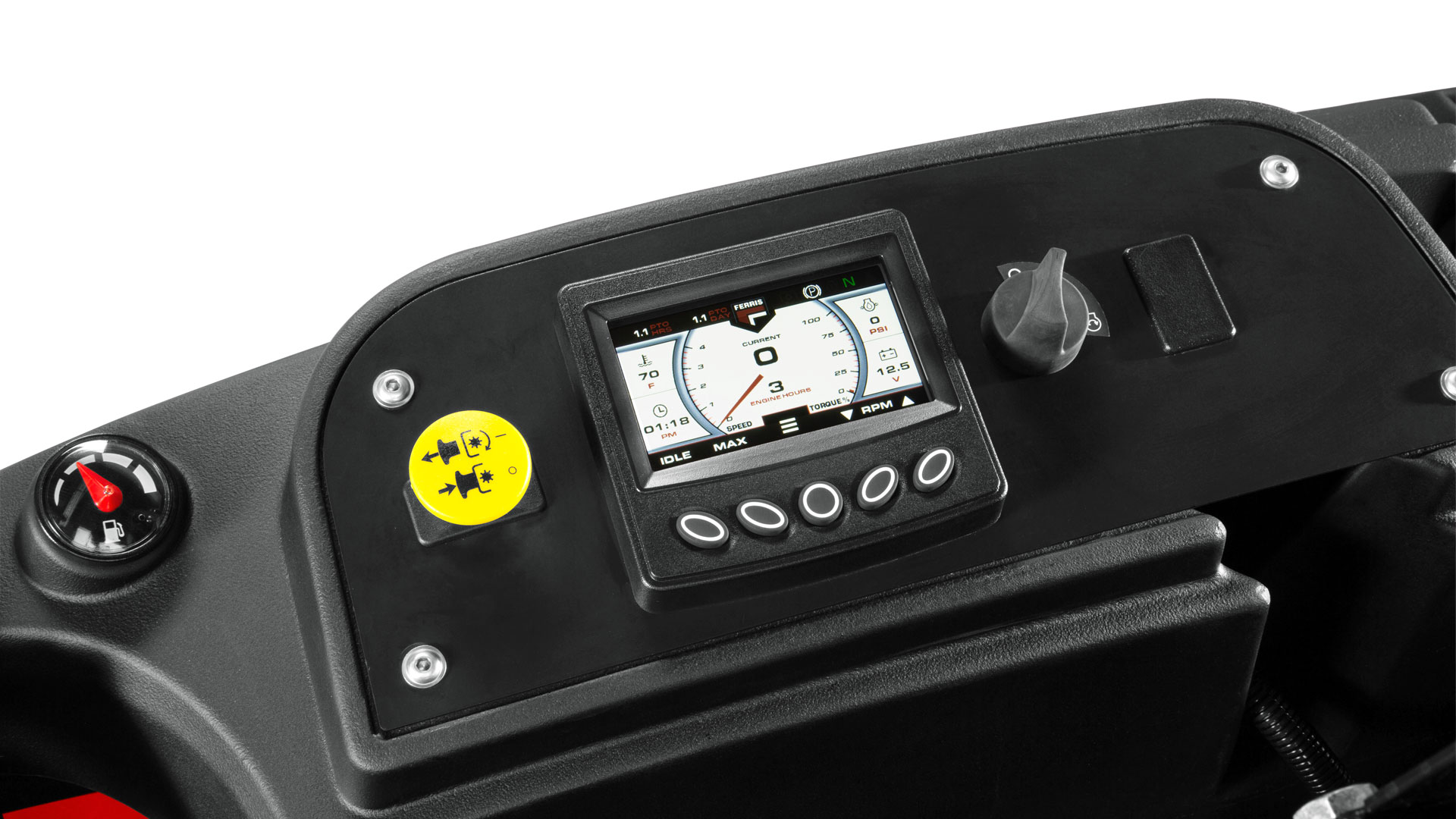

Performance Monitoring Display

The interactive onboard display maintains and monitors the performance and operation of the mower for peak performance. The display also ensures the proper engagement of safety interlock and mower components with visual fault indicators to extend the life of belts and clutch.

Hydraulic Deck Lift

Hydraulic deck lift makes it easy to lift and lower the mower deck to achieve the optimal height-of-cut for the job at hand. Cut height ranges from 1.5-6 inches.

Heavy Duty Components

A hand-operated 450 ft lb Warner Electric clutch and a right angled Curtis© gearbox with dual 1" shafts harnesses more horsepower for a smoother and faster operation. Dual-commercial 21cc Hydro-Gear pumps and 20.6 cu inch Parker wheel motors with an external oil cooler.

* Engine output is rated for 48 gross horsepower at 2800 rpm as rated by CAT
† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Brand
CAT Turbo Diesel
Engine Power Rating (HP) *
48
Displacement (cc)
1700
PTO
Electric, 450 ft lbs
Cylinders
3
Starter
Electric
Fuel Tank Capacity (litres)
68.2
Cutting Width in(cm)
72 (183)
Cutting Height in(cm)
1.5 - 6 (3.8 - 15.3)
Spindles
Hercules™ II Cast-Iron
Deck Construction
iCD™+ Cutting System, 2-Belt
Suspension
Independent front and rear-suspension, featuring adjustable large coil-over shock
Drive Axles (in)
1.25 Tapered
Caster Tyres (in)
13 x 6.5-6
Drive Tyres (in)
26 x 12-12
Ground Speed-Fwd (kph)
0 - 19.3
Ground Speed-Rev (kph)
0 - 8.1
Overall Length (mm)
2278
Overall Width (mm) Deflector Down / Up
2182 / 1880
Dry Weight (kg)
1143
Seat Package
Premium high-back suspension seat with arm rests, adjustable lumbar and back recline
ROPS
105° foldable
Parking Brake / Safety Circuit
Hand operate external drum type
Warranty (Engine) †
2-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.

* Engine output is rated for 48 gross horsepower at 2800 rpm as rated by CAT
See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.
